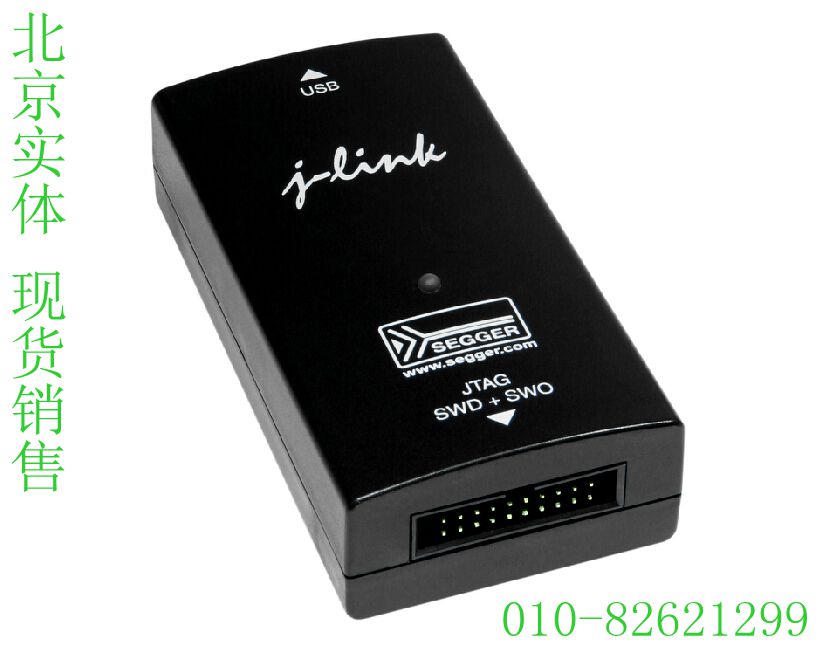

J-LINK JLINK V9仿真器下载NXP STM32 K60 ARM CORTEX M3 M4 V8 J-LINK V9 仿真器 - 中发网-中发电子市场官方网站，电子元器件一站式采购平台

Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in tens of thousand places for development and production (flash programming) purposes.

J-Link is supported by all major IDEs such as IAR EWARM, Keil MDK, Rowley CrossWorks, Atollic TrueSTUDIO, IAR EWRX, Renesas HEW, Renesas e2studio, and many others.

Including all models, more than 100,000 J-Links have been sold so far, making J-Link probably the most popular emulator for ARM cores and the de-facto standard.

J-Link Features

The de-facto standard debug probe (J-Link, more than 100,000 units have been sold so far)
Up to 3 MByte/s Download speed!
Intelligence in the emulator firmware
Compatible with all popular tool chains
Support for multi core debugging
Supports an unlimited number of software breakpoints in flash memory
Setting breakpoints in external flash memory of Cortex-M systems is possible with
J-Link's Unlimited Flash Breakpoints technology only!
Cross platform support (Microsoft Windows, Linux, Mac OS X)
Supports concurrent access to CPU by multiple applications
Remote Server included. Allows using J-Link remotely via TCP/IP
All CPU families supported by the J-Link software can be used without additional license
No charges for software updates
RDI / RDDI interface DLL available
Software comes with free GDBServer, allowing usage of J-Link with all GDB-based debug solutions
Production flash programming software (J-Flash) available
Debugger independent flash download (internal flash, CFI flash, SPIFI flash)
Supports CPU/MCU internal trace buffer (ETB, MTB, ...)
Supports ETM tracing (J-Trace Cortex-M, J-Trace ARM)
Can be connected to the host PC via USB or Ethernet (J-Link PRO)
No power supply required, powered through USB
Wide target voltage range: 1.2V - 3.3V, 5V tolerant
All JTAG signals can be monitored, target voltage can be measured
Target power supply: J-Link can supply up to 300 mA to target with overload protection
An SDK is available (Allows customized use of J-Link)
Various target adapters available, including optical isolation adapter
Supports multiple target interfaces (JTAG, SWD, FINE, SPD, ...)

Supported CPUs

J-Link works with any of the following CPU cores:

ARM7/9/11
Cortex-A5/A8/A9
Cortex-M0/M0+/M1/M3/M4/M7
Cortex-R4/R5
Microchip PIC32
Renesas RX110, RX111, RX113
Renesas RX210, RX21A, RX220
Renesas RX610
Renesas RX621, RX62G, RX62N, RX62T
Renesas RX630, RX631, RX63N, RX63T

配件清单:

1、J-LINK V9 仿真器1 台

2、USB线 1 条

3、20PIN 优质连接线 1条

原厂链接:

http://www.segger.com/jlink.html

驱动下载:

http://www.segger.com/download_jlink.html

规格参数

型号	J-LINK V9 仿真器
品牌	国产
