商品描述

xilinx ZedBoard开发板原装正品!

FPGA开发板?ARM开发板?

不是,它是个FPGA/ARM开发板

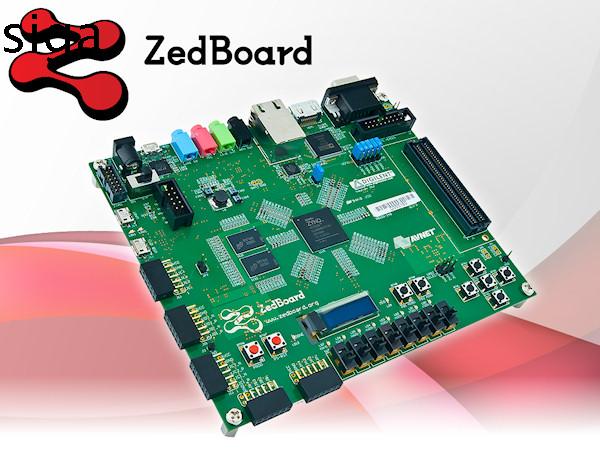

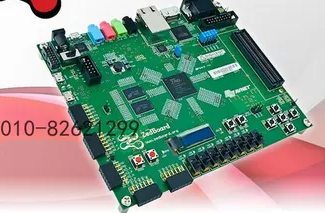

产品照片:

http://www.openhw.org/bbs/article_1156_494273.html(复制后打开)

Zedboard资料帖汇总

1.ZED板原理图,ZED板物料清单,ZED板PCB图

2.ZED资料-Zynq-7000,XC7Z010-XC7Z020数据手册

3.技术大牛,学习zedboard的笔记贴

4.zynq-7000可扩展处理平台综述

5.Xilinx官网上的关于Zynq平台的软件开发和相关工具使用手册

6.Zynq7000术语详解,不懂啥是PL,PS,APU,SCU?那就进来看看吧

7.Zynq7000启动流程介绍

8.信马由缰-XILINX的ARM芯片初探(之一)

9.基于MAX1452硅压阻传感器的智能温度补偿研究

10.建议大家从ucosii for zynq 开始搞起

11.从零开始,ubuntu上搭建xilinx zynq linux 编译环境

12.2012 X-fest 最新资料包(基于FPGA的电机控制+基于Xilinx7系列的PCIe嵌入式设计+基于Xilinx7系列FPGA的采样和数据处理...)

13.ZedBoard Getting Started Guide

14.从零开始,搭建zynq-7000的PS硬件平台--USB端口(最新)

15.ZEDBOARD 的一个设计实例 (最新)

16.Zynq评估板及ZED板供电方案(最新)

17.美信模拟设计要点入门指南(Zedboard版)(最新)

18.从零开始,搭建zynq-7000的PS硬件平台--Ethernet(最新)

19.官网22号放出来的Zedboard 实验例程(最新)

持续更新,同求分享... ...

Key Features

Zynq Processor
- Dual ARM® Cortex™-A9 MPCore™
- Up to 667 MHz operation
- NEON™ Processing / FPU Engines

Memory
- 512 MB DDR3 memory (1066 Mbps)
- 256 Mb Quad SPI Flash
- Full size SD/MMC card cage
- 4 GB SD Card Included

Connectivity
- 10/100/1000 Ethernet
- USB OTG (Device/Host/OTG)
- USB UART

Expansion
- FMC (Low Pin Count)
- (5) Pmod™ headers (2x6)

Video/Display
- HDMI output (1080p60 + audio)
- VGA connector
- 128 x 32 OLED
- User LEDs (9)

User Inputs
- Slide switches (8)
- Push button switches (7)

Audio
- 24-bit stereo audio CODEC
- Stereo line in/out
- Headphone
- Microphone input

Analog
- Xilinx XADC header
- Supports 4 analog inputs
- 2 Differential / 4 Single-ended

Debug/Programming
- On-board USB JTAG programming port
- ARM Debug Access Port (DAP)

Power
- 12V DC input @ 3.0 A (Max)

Dimensions
- Length: 6.3 inches
- Width: 5.3 inches

Certification
- CE and RoHS certified

Target Applications:

Video processing
Motor control
Software acceleration
Linux/Android/RTOS development
Embedded ARM® processing
General Zynq™-7000 EPP prototyping

ZedBoard is a low-cost development board for the Xilinx Zynq™-7000 Extensible Processing Platform (EPP). This board contains everything necessary to create a Linux, Android, Windows® or other OS/RTOSbased design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access.

Take advantage of the Zynq-7000 EPP’s tightly coupled ARM® processing system and 7 series programmable logic to create unique and powerful designs with the ZedBoard. The ZedBoard kit is supported by the www.zedboard.org community website where users can collaborate with other engineers also working on Zynq designs.

Kit Includes:

Avnet ZedBoard 7020 baseboard
12 V AC/DC power supply
4 GB SD Card
Micro-USB cable
USB Adapter: Male Micro-B to Female Standard-A
Getting Started Guide
ISE® WebPACK™ with device-locked ChipScope license
